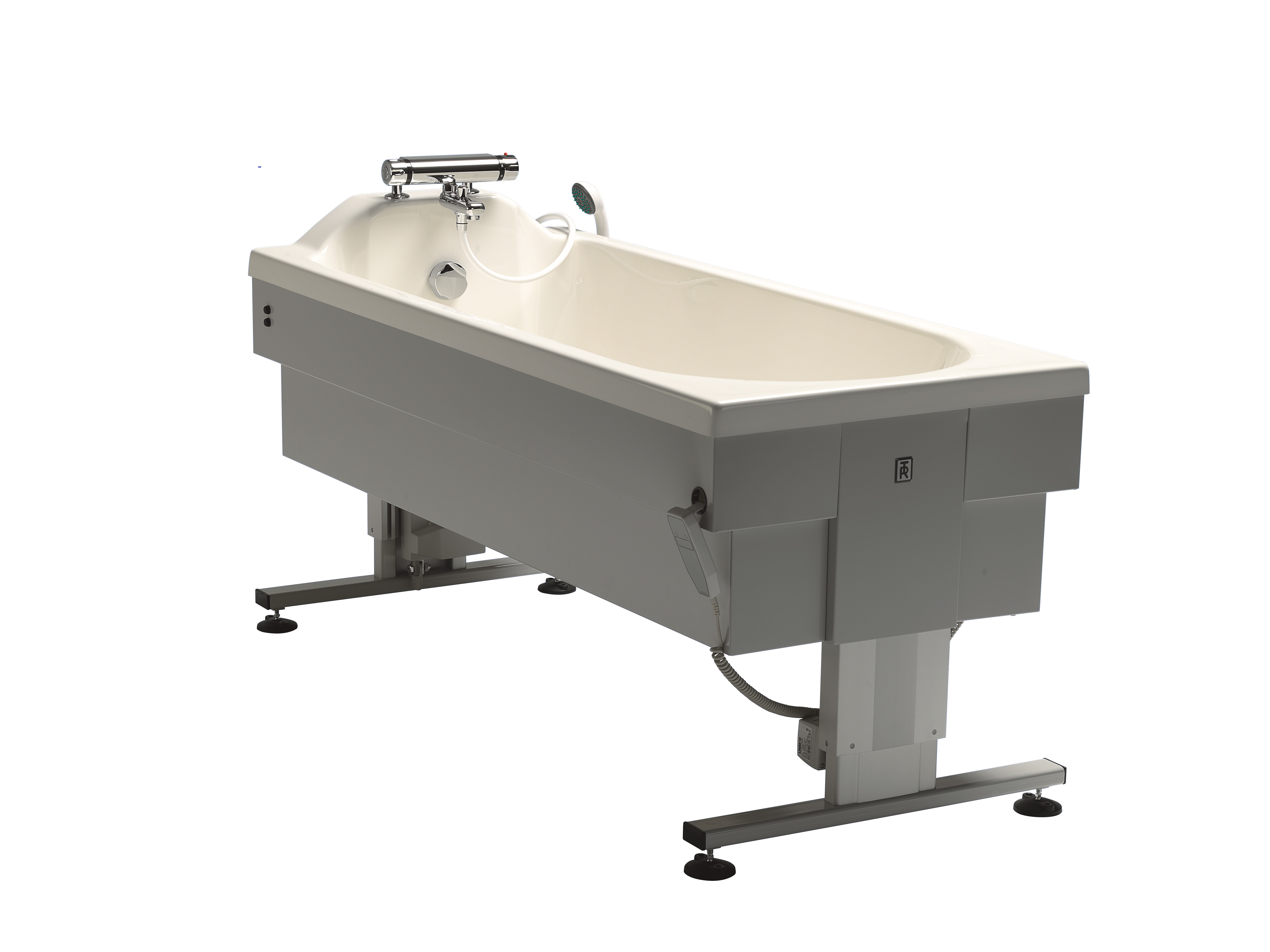

TR-1700 Space Saving Bathtub
The TR-1700 is TR Equipment's space saving height-adjustable bathtub — 330 lbs (150 kg) capacity, compact 66×27 in footprint, and electric height adjustment for high-volume clinical bathing.
Specifications
| Max. User Weight | 330 lbs (150 kg) |
|---|---|
| Length | 66 in |
| Width | 27 in |
| Height / Adjustment Range | 26–38 in working height |
| Drive / Adjustment Type | Electric height adjustment |
| Frame Material | Tub and powder-coated steel frame |
| Model / SKU | TR-1700 |
Key Features
- 330 lbs (150 kg) maximum user weight
- Compact 66×27 in footprint — space saving design
- Electric height adjustment — push-button pendant control
- 26–38 in working height range
- Thermostatic water temperature control
- Non-slip tub floor
- Built-in drainage system
Overview
The TR-1700 is TR Equipment’s space saving bathtub — designed to deliver height-adjustable electric bathing in a significantly more compact footprint than the TR-900 series (66 in vs. 92 in length). This makes it well-suited for smaller bathrooms and en-suite configurations common in newer care facility builds.
Electric height adjustment via push-button pendant reduces caregiver effort during bathing sessions and enables precise working height without manual pumping.
Specifying the TR-1700 vs. TR-900
| TR-1700 | TR-900 | |
|---|---|---|
| Length | 66 in | 92 in |
| Width | 27 in | 33 in |
| Height adjustment | Electric | Hand control |
| Capacity | 330 lbs (150 kg) | 330 lbs (150 kg) |
Choose the TR-1700 when:
- Room size is limited and a compact footprint is required
- Electric height adjustment is preferred over manual control
- Caregiver ergonomics policy requires powered height adjustment
Frequently Asked Questions
How much smaller is the TR-1700 compared to the TR-900? The TR-1700 is about 25 in shorter (66 in vs. 92 in) and about 5 in narrower (27 in vs. 33 in) than the TR-900. In a bathroom with limited floor area, this difference is often the deciding factor.
Is electric height adjustment significantly easier than hand control? In high-volume bathing environments, the difference is meaningful. Electric adjustment eliminates the physical pumping action required by the TR-900’s hand control, reduces caregiver fatigue over many bathing sessions, and adjusts faster — important where throughput and time per patient matter.
Does the TR-1700 work with hoist and transfer accessories? Yes. The TR-1700 is compatible with TR Equipment hoisting and transfer accessories for patients who cannot independently step in or out of the tub. Contact us to discuss a complete bathing room specification.
Accessories
Accessories for the TR-1700 — including bath lifts and transfer aids — are available through authorized dealers. Full accessories listing coming soon.
Contact us to find an authorized dealer near you.
