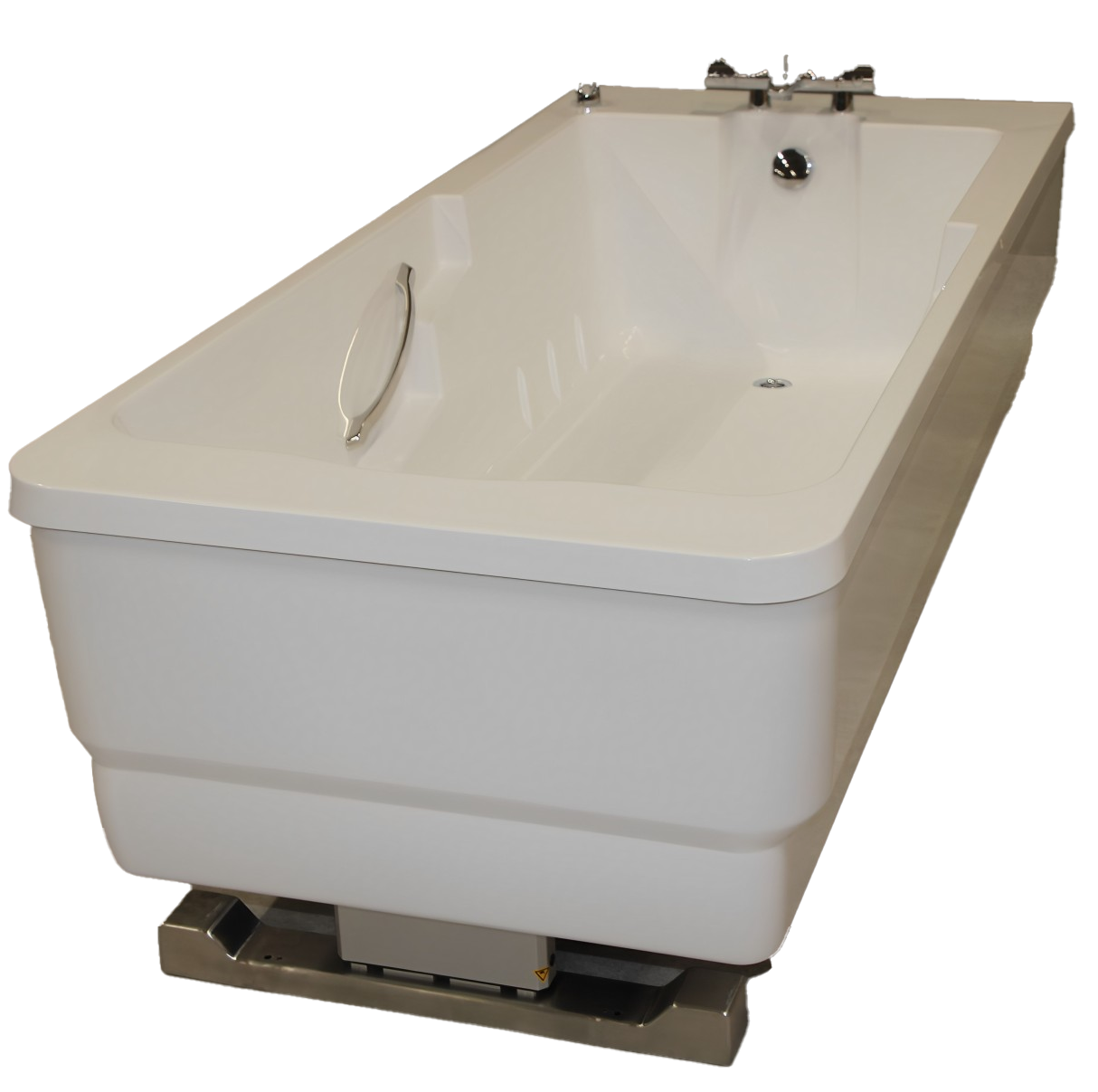

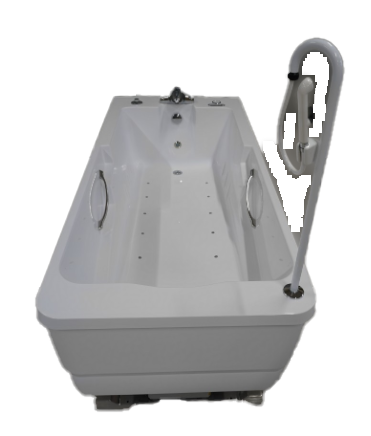

TR Spaceline Bathing System
The TR Spaceline is TR Equipment's space-optimized bathing system — designed for facilities where room dimensions limit standard tub installation without compromising clinical function.
Specifications
| Max. User Weight | 440 lbs (200 kg) |
|---|---|
| Drive / Adjustment Type | Electric height adjustment |
| Frame Material | Acrylic tub, powder-coated steel frame |
| Model / SKU | TR-Spaceline |
Key Features
- Compact footprint — designed for space-constrained rooms
- Electric height adjustment
- 440 lbs (200 kg) maximum user weight
- Full clinical function in reduced floor area
- Thermostatic water control
- Non-slip tub floor
Overview
The TR Spaceline addresses one of the most common challenges in healthcare renovation: fitting a clinically capable bathing system into a room that wasn’t originally designed for it. The Spaceline’s compact footprint delivers full patient bathing capability without requiring a full-size bath room footprint.
This makes the Spaceline the default choice for:
- Retrofit installations in existing nursing home or hospital rooms
- Older facilities where bathrooms were designed for domestic rather than clinical use
- New builds with constrained bathroom allocations
Comparing TR Bathing System Lines
| Model | Footprint | Height Adj. | Best For |
|---|---|---|---|
| TR-900 | 92×33 in | Hand control | Standard-spec new builds |
| TR-900 SS | 92×33 in | Hand control | Infection control environments |
| TR-1700 | 66×27 in (compact) | Electric | Space-limited rooms, electric preference |
| TR Spaceline | Compact | Electric | Space-constrained rooms |
| TR Comfortline | Standard | Electric | Enhanced patient comfort |
| TR Ecoline | Standard | Fixed height | Cost-optimized specification |
| TR Swing | Specialized | Electric | Complex transfer needs |
Frequently Asked Questions
What does “compact footprint” mean in practical dimensions? The Spaceline is designed for rooms where the TR-900 (92 in) or TR-1700 (66 in) cannot be accommodated. Exact Spaceline dimensions vary by configuration — contact us for full installation specifications and room planning support.
Is the Spaceline appropriate for new-build installations or only retrofit? Both. While the Spaceline’s compact design is frequently chosen for retrofit into existing bathrooms, it is equally appropriate for new builds where bathroom dimensions are constrained by building layout. For new construction, sharing the Spaceline’s installation specifications with your project architect early avoids downstream spec changes.
Does the Spaceline support hoist and transfer accessories? Yes. The Spaceline is compatible with TR Equipment hoisting and transfer accessories. For complex transfer needs or fully dependent patients, contact us to discuss a complete bathing room configuration including ceiling hoist compatibility.
Accessories
Accessories for the TR Spaceline are available through authorized dealers. Full accessories listing coming soon.
Contact us for room assessment and installation specifications.
