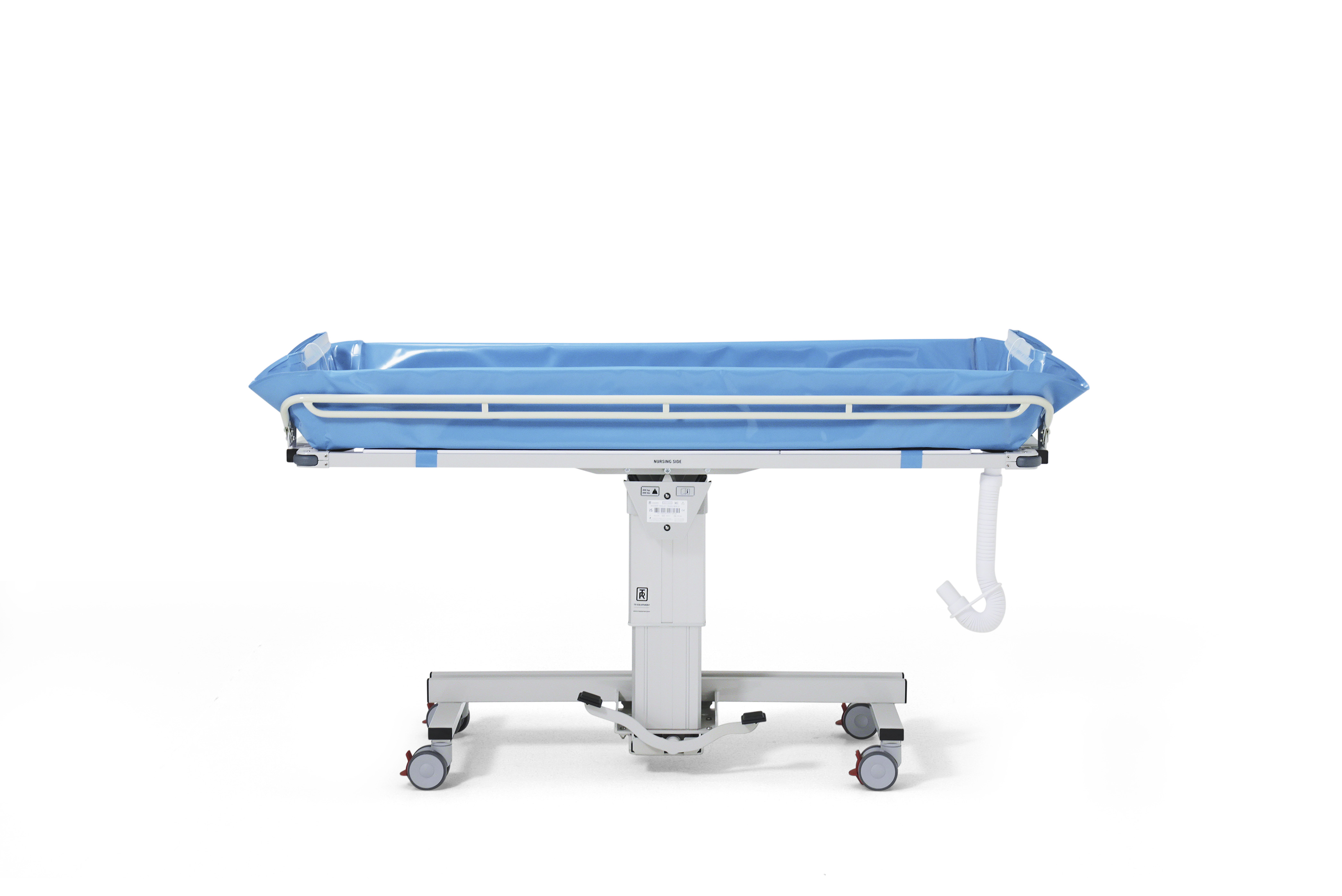

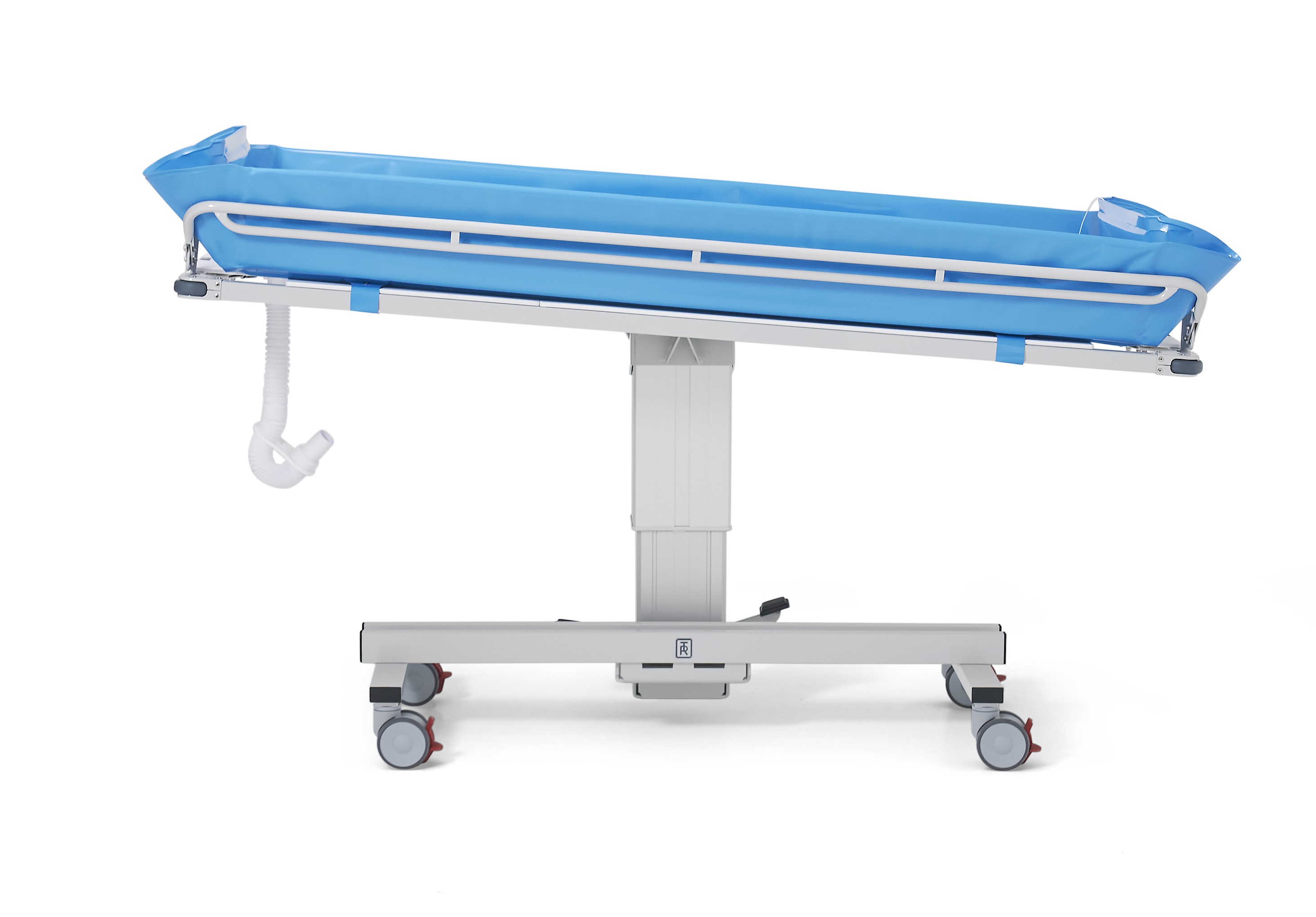

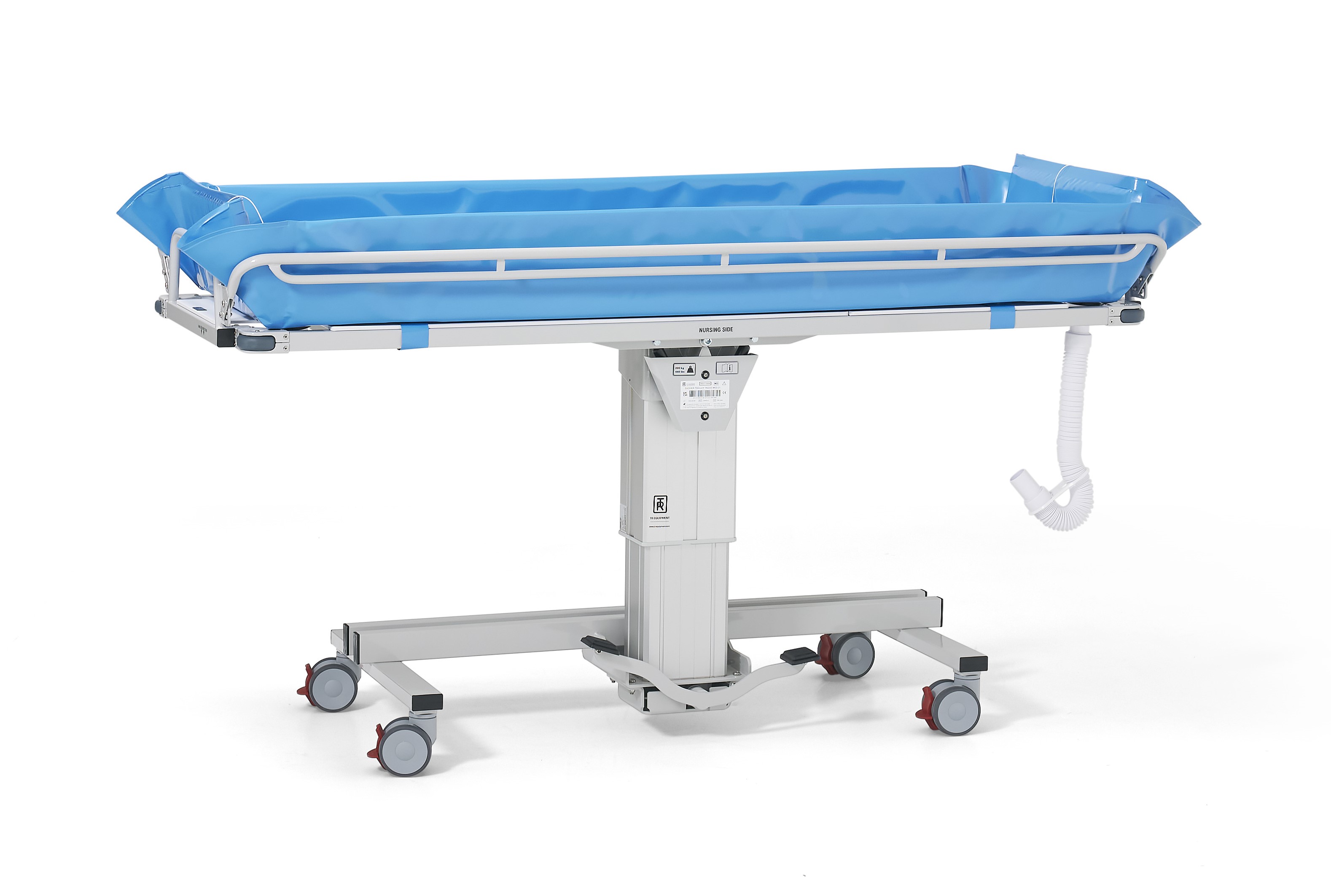

TR-2000 Mod 21 Shower Trolley
The TR-2000 Mod 21 is TR Equipment's entry-level height-adjustable shower trolley — foot-operated hydraulic height adjustment, tilt function, and 440 lbs (200 kg) capacity for clinical patient bathing.
Specifications
| Max. User Weight | 440 lbs (200 kg) |
|---|---|
| Length | 75 in — standard size |
| Width | 25 in (27 in Wide) |
| Height / Adjustment Range | 24–35 in working height |
| Drive / Adjustment Type | Foot-operated hydraulic height adjustment |
| Frame Material | Powder-coated steel frame, stainless steel fittings |
| Model / SKU | TR-2000-Mod21 |
Key Features
- Continuous height adjustment — foot-operated hydraulic pump
- Tilt function for hair washing and drainage
- Shower-through slatted mattress support
- Side rails fold down for patient transfers
- Four swivel castors with brakes
- 440 lbs (200 kg) maximum user weight
- Available in 4 sizes: S (63 in), Standard (75 in), L (83 in), Wide (77×27 in)
- Compatible with TR Equipment shower chairs and accessories
Overview
The TR-2000 Mod 21 is TR Equipment’s entry-level clinical shower trolley — a practical, durable choice for facilities that need reliable patient bathing equipment without the complexity of electric height adjustment.
Foot-operated hydraulic height adjustment raises and lowers the trolley surface to match caregiver height, freeing both hands for patient care during repositioning. The tilt function allows head-down positioning for hair washing and full drainage.
Sizes
The TR-2000 is available in four sizes to match patient populations and room dimensions:
| S (Pediatric) | Standard | L (Long) | Wide | |
|---|---|---|---|---|
| External Width | 25 in | 25 in | 25 in | 27 in |
| Mattress Width | 23 in | 23 in | 23 in | 25 in |
| External Length | 63 in | 75 in | 83 in | 77 in |
| Mattress Length | 56 in | 68 in | 76 in | 70 in |
Who Is This For?
The TR-2000 is well-suited for:
- Nursing homes and skilled nursing facilities with moderate patient bathing volumes
- Facilities transitioning from fixed-height trolleys to adjustable equipment
- Budget-conscious procurement where electric adjustment is not required
Comparison
| TR-2000 Mod 21 | TR-3000 Mod 21 | |
|---|---|---|
| Height adjustment | Foot-operated hydraulic | Electric (battery) |
| Tilt | Manual | Manual |
| Capacity | 440 lbs (200 kg) | 440 lbs (200 kg) |
Frequently Asked Questions
What is the difference between hydraulic and electric height adjustment? Hydraulic adjustment requires the caregiver to operate a foot pump to raise the trolley and release a valve to lower it. Electric adjustment (on the TR-3000) uses a hand pendant — one button raises, one lowers. Hydraulic is reliable and requires no battery charging; electric reduces physical effort and is faster in high-throughput settings.
Does the TR-2000 require an electrical outlet? No. The TR-2000 is fully non-electric — foot-operated hydraulic mechanism, manual tilt. It operates anywhere without power infrastructure.
What drain or plumbing requirements does the TR-2000 have? The TR-2000 requires standard clinical shower drainage below the trolley. No fixed plumbing connects to the trolley itself — water delivery is handled separately by a shower arm or panel (see the TR-2810 Shower Panel).
Can the TR-2000 surfaces be disinfected? Yes. The powder-coated frame and stainless steel fittings are compatible with standard hospital-grade disinfectants. The slatted mattress support and any mattress/pad accessories should be cleaned per the IFU and the accessory manufacturer’s cleaning protocol.
Accessories
Accessories for the TR-2000 — including mattress pads, IV poles, and positioning aids — are available through authorized dealers. Full accessories listing coming soon.
Contact us to find an authorized dealer near you.
