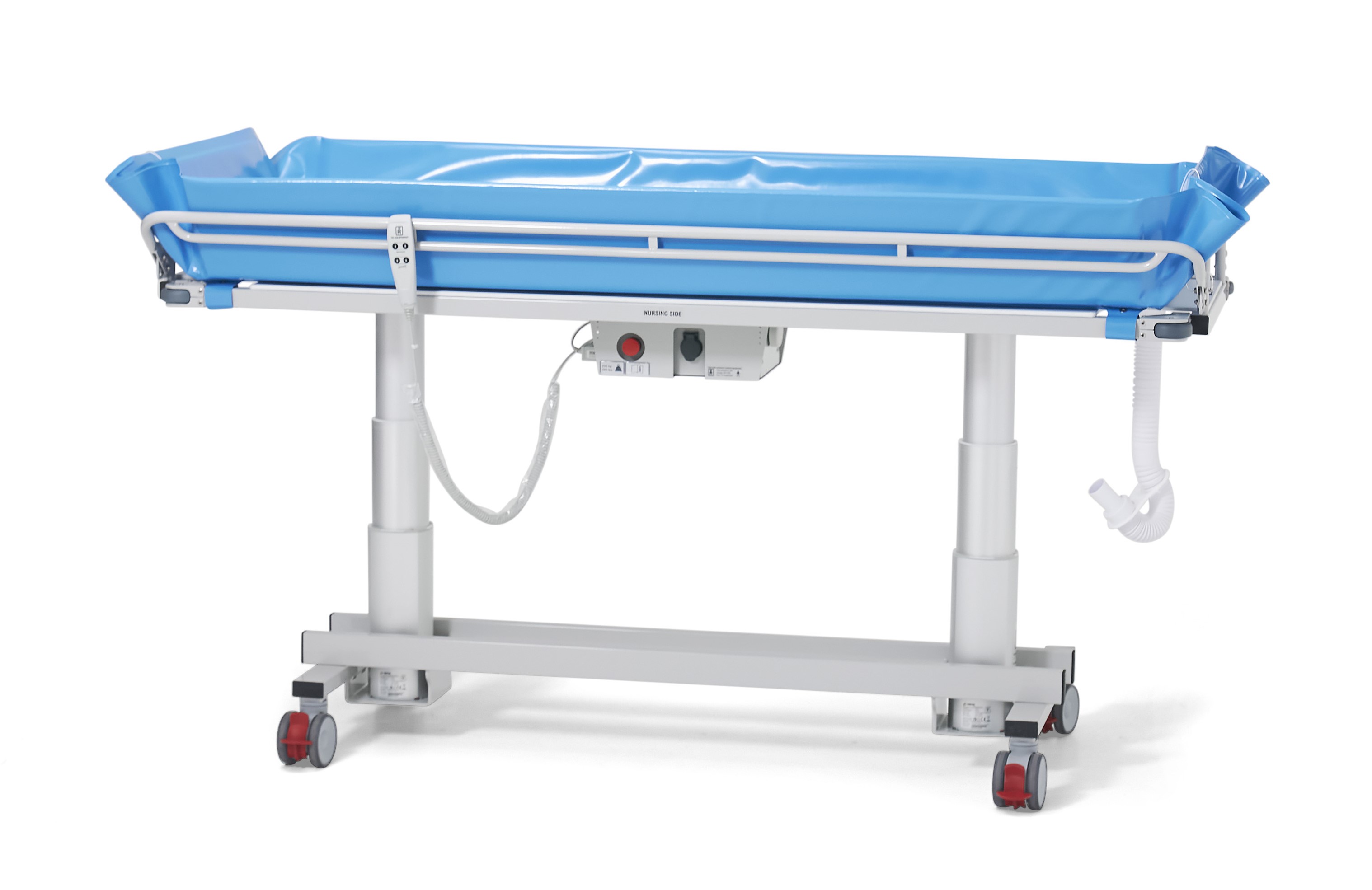

TR-3200 Shower Trolley
The TR-3200 is TR Equipment's electric shower trolley with full electric height and tilt via hand control. 507 lbs (230 kg) capacity and extended height range for facilities requiring greater positioning flexibility.
Specifications
| Max. User Weight | 507 lbs (230 kg) |
|---|---|
| Length | 77 in — standard size |
| Width | 27 in |
| Height / Adjustment Range | 20–35 in working height |
| Drive / Adjustment Type | Electric height and tilt — hand control pendant |
| Frame Material | Powder-coated steel frame, stainless steel fittings |
| Model / SKU | TR-3200 |
Key Features
- Full electric height and tilt via hand control pendant
- Extended height range — 20 to 35 in working height
- 507 lbs (230 kg) maximum user weight
- Shower-through slatted mattress support
- Fold-down side rails
- Four swivel castors with brakes
- Battery-powered with charging dock
- Available in 2 sizes: Standard (77×27 in), Long (85×31 in)
Overview
The TR-3200 provides full electric control of both height and tilt via a single hand control pendant — giving caregivers precise one-handed positioning during patient bathing. The extended height range (20–35 in) accommodates a broader range of caregiver heights and enables a lower floor position for easier lateral patient transfers from beds.
The 507 lbs (230 kg) weight capacity and choice of standard or long mattress surface make the TR-3200 a versatile standard-capacity option for a wide range of patient populations.
Sizes
| Standard | Long | |
|---|---|---|
| External Width | 27 in | 31 in |
| Mattress Width | 25 in | 28 in |
| External Length | 77 in | 85 in |
| Mattress Length | 70 in | 78 in |
Who Is This For?
The TR-3200 is specified by facilities that need:
- Full electric control of both height and tilt (upgrade over TR-3000’s manual tilt)
- Greater height range than the TR-3000 (useful for mixed caregiver height profiles)
- Higher weight capacity than the standard 440 lbs (200 kg) TR-3000
Frequently Asked Questions
Why does the TR-3200 have a lower minimum height than the TR-3000? The TR-3200 reaches 20 in at its lowest vs. 24 in for the TR-3000. This lower floor position makes it easier to perform lateral transfers directly from a bed — the trolley surface can sit at or below bed height, reducing the lift required during patient transfer.
Is the TR-3200 available in a longer size for larger patients? Yes. The TR-3200 Long version (85 × 31 in) provides both a longer and wider mattress surface for taller patients who need more support. For patients above 507 lbs (230 kg), the TR-4200 Atlas Junior and TR-4000 Atlas are the appropriate bariatric specifications.
When should I choose the TR-3200 over the TR-3000? Choose the TR-3200 if: (1) you need electric tilt as well as electric height, (2) your facility’s patient mix includes patients in the 440–507 lbs (200–230 kg) range, or (3) your caregiver team spans a wide height range and benefits from the extended 20–35 in working height range. The TR-3000 covers most standard-capacity requirements where manual tilt is acceptable.
Accessories
Accessories for the TR-3200 — including mattress pads, IV poles, and positioning aids — are available through authorized dealers. Full accessories listing coming soon.
Contact us to find an authorized dealer near you.
