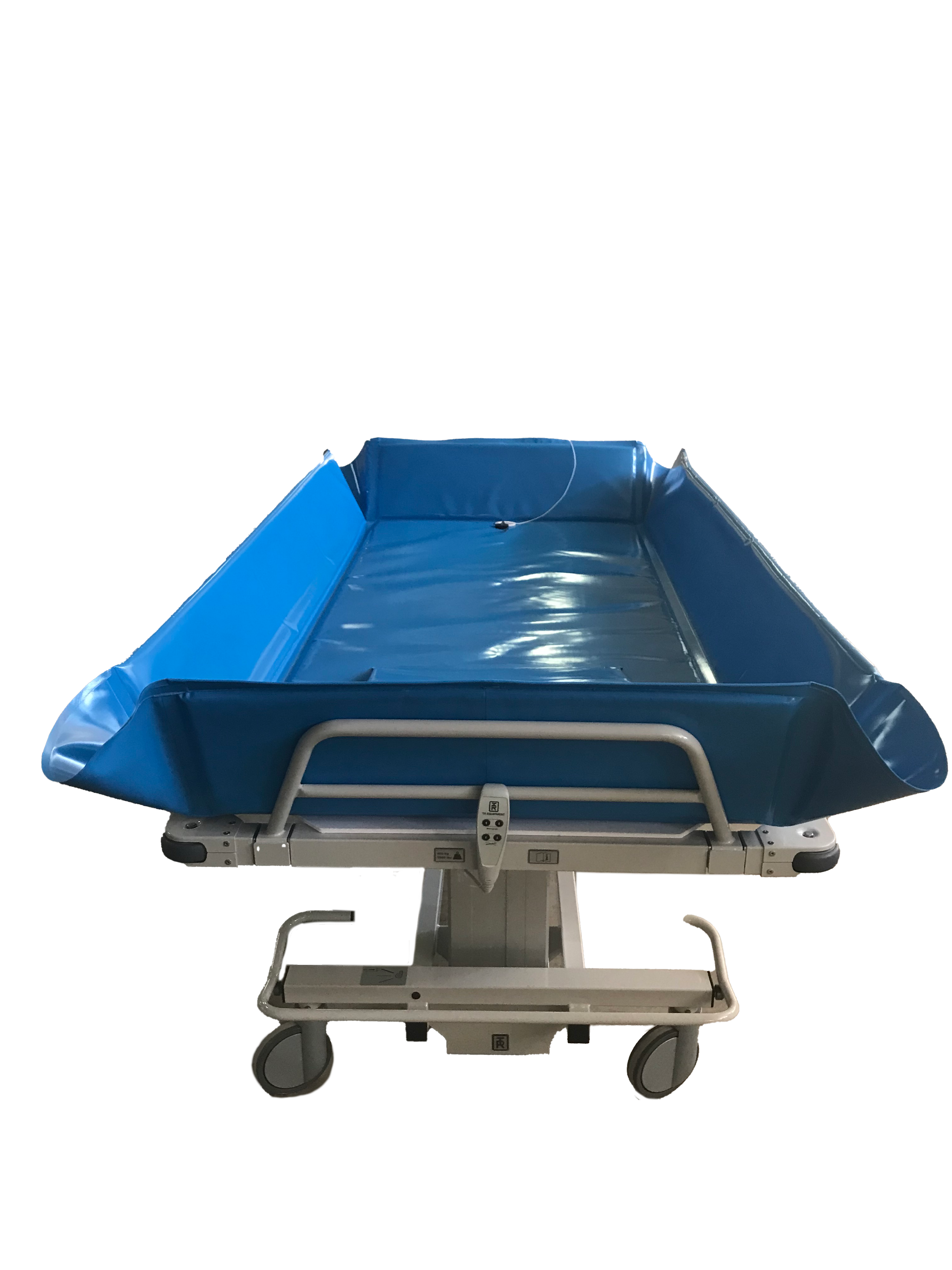

TR-4000-W Atlas Wide Bariatric Shower Trolley
The TR-4000-W Atlas Wide is TR Equipment's extra-wide bariatric shower trolley — 992 lbs (450 kg) capacity with a 42 in mattress surface for the highest bariatric care demands.
Specifications
| Max. User Weight | 992 lbs (450 kg) |
|---|---|
| Length | 87 in |
| Width | 42 in |
| Height / Adjustment Range | 21–33 in working height |
| Drive / Adjustment Type | Electric height and tilt |
| Frame Material | Heavy-duty powder-coated steel frame |
| Model / SKU | TR-4000-W |
Key Features
- 992 lbs (450 kg) maximum user weight
- Extra-wide 42 in mattress surface — maximum bariatric support
- Electric height adjustment and tilt
- Reinforced heavy-duty steel frame
- Heavy-duty swivel castors with brakes
- Shower-through slatted mattress support
- Fold-down side rails with locking position
- Battery-powered electric system
Overview
The TR-4000-W Atlas Wide is the maximum-specification bariatric shower trolley in the TR Equipment range. It shares the 992 lbs (450 kg) capacity and electric height-and-tilt functionality of the TR-4000 Atlas, but extends the mattress width to 42 in — providing exceptional support surface for the largest bariatric patients.
The extra width is the key differentiator from the standard TR-4000 Atlas (36 in). For patients who require the full 42 in surface, the TR-4000-W is the clinical specification of choice.
Comparing the TR-4000 Atlas Series
| TR-4000 Atlas | TR-4000-W Atlas Wide | |
|---|---|---|
| Capacity | 992 lbs (450 kg) | 992 lbs (450 kg) |
| Mattress width | 36 in | 42 in |
| Length | 87 in | 87 in |
| Height range | 21–33 in | 21–33 in |
Who Is This For?
- Bariatric centers of excellence and specialized obesity medicine units
- Facilities where patient weights regularly approach or exceed 660 lbs (300 kg)
- Acute hospitals with dedicated bariatric ICU or step-down capacity
Frequently Asked Questions
When does the extra width of the TR-4000-W matter clinically? The 42 in mattress surface of the TR-4000-W provides meaningful additional lateral support for patients whose body width exceeds what the 36 in TR-4000 Atlas can comfortably accommodate. For very large patients, a wider surface reduces the risk of limbs extending over the edge during bathing and provides better distribution of patient weight across the trolley surface.
Does the TR-4000-W fit through standard bariatric room doorways? At 42 in wide, the TR-4000-W requires bariatric-configured doorways (typically 60 in or wider in purpose-built bariatric suites). Standard clinical doorways that accommodate the 36 in TR-4000 may not accommodate the TR-4000-W. Facility planning should confirm clearances before specification.
Is the capacity the same as the standard TR-4000 Atlas? Yes — both the TR-4000 Atlas (36 in) and TR-4000-W Atlas Wide (42 in) are rated to 992 lbs (450 kg). The wider model is specified when patient size requires additional surface width, not additional weight capacity.
Accessories
Accessories for the TR-4000-W Atlas Wide — including bariatric mattress pads and positioning aids — are available through authorized dealers. Full accessories listing coming soon.
Contact us to find an authorized dealer near you.
