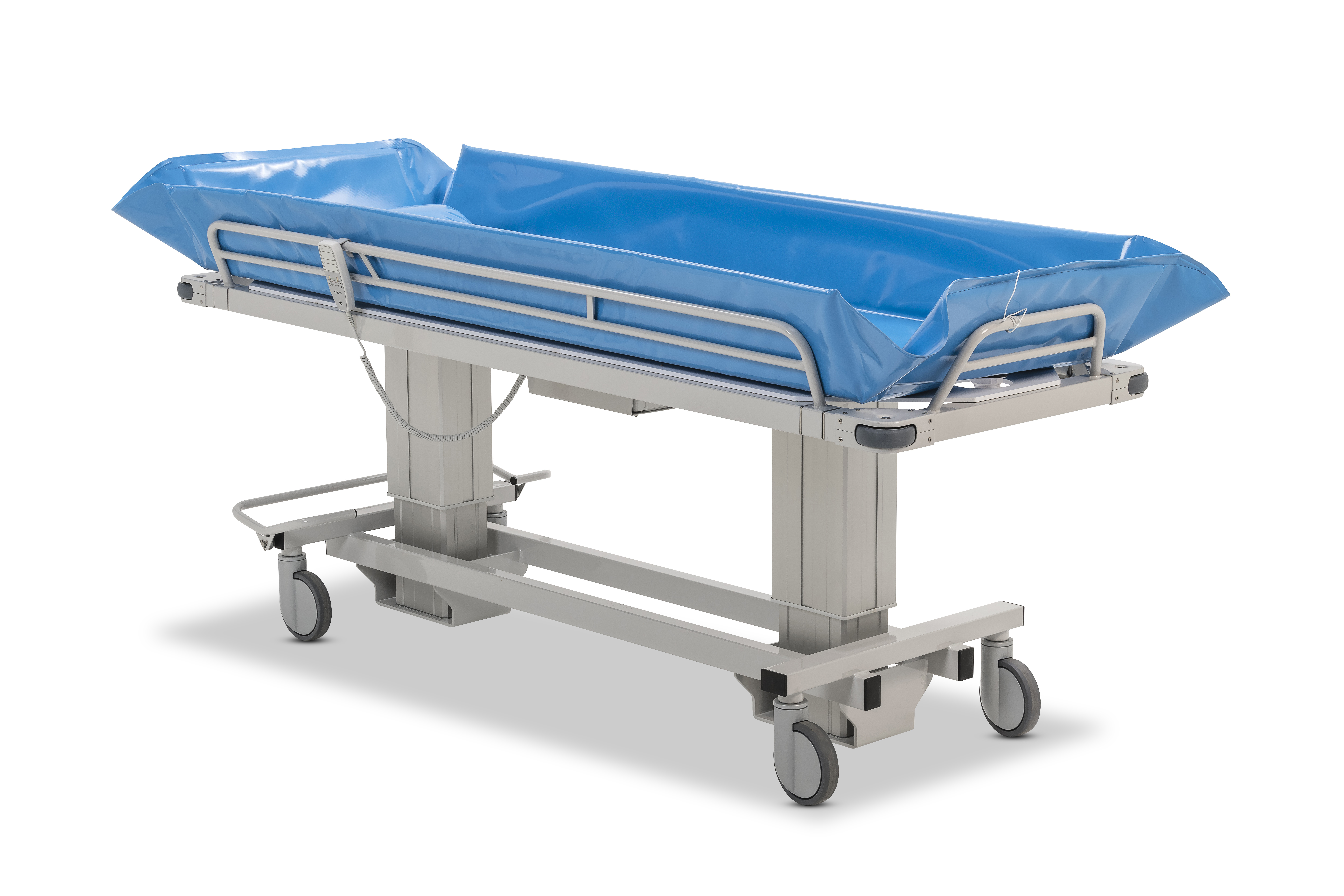

TR-4200 Atlas Junior Bariatric Shower Trolley
The TR-4200 Atlas Junior is TR Equipment's compact bariatric shower trolley — 595 lbs (270 kg) capacity with electric height and tilt in a narrower 29 in footprint for tighter spaces.
Specifications
| Max. User Weight | 595 lbs (270 kg) |
|---|---|
| Length | 85 in |
| Width | 29 in |
| Height / Adjustment Range | 21–33 in working height |
| Drive / Adjustment Type | Electric height and tilt |
| Frame Material | Heavy-duty powder-coated steel frame |
| Model / SKU | TR-4200-Atlas-Junior |
Key Features
- 595 lbs (270 kg) maximum user weight
- Narrower 29 in width — fits tighter bathrooms and corridors
- Electric height adjustment and tilt
- Reinforced bariatric frame
- Shower-through slatted surface
- Fold-down side rails
- Heavy-duty castors with brakes
- Battery-powered — no fixed power connection required
Overview
The TR-4200 Atlas Junior bridges the gap between the standard-capacity TR-3200 and the full bariatric TR-4000 Atlas. With a 595 lbs (270 kg) capacity and a narrower 29 in mattress width, it is the right choice when patient weight exceeds the 507 lbs (230 kg) TR-3200 rating but space constraints rule out the wider TR-4000 Atlas (36 in).
Electric height and tilt are controlled via hand pendant.
Specifying Bariatric Equipment
When specifying between the TR-4200 Atlas Junior and TR-4000 Atlas, the primary considerations are:
- Patient weight — TR-4200 covers up to 595 lbs (270 kg); TR-4000 covers up to 992 lbs (450 kg)
- Room width — TR-4200 at 29 in may navigate corridors and doorways that the 36 in TR-4000 cannot
- Mattress surface — TR-4000’s wider surface provides more support for very large patients
Full Model Comparison
| TR-3200 | TR-4200 Atlas Junior | TR-4000 Atlas | TR-4000-W Atlas Wide | |
|---|---|---|---|---|
| Capacity | 507 lbs (230 kg) | 595 lbs (270 kg) | 992 lbs (450 kg) | 992 lbs (450 kg) |
| Width | 27–31 in | 29 in | 36 in | 42 in |
| Height and tilt | Electric | Electric | Electric | Electric |
Frequently Asked Questions
Is the TR-4200 appropriate for general use, or only bariatric programs? The TR-4200 is a reinforced-frame bariatric trolley — it is rated and built for heavier loads than standard-capacity models. It is appropriate in any environment where patient weight may approach or exceed 507 lbs (230 kg), including general acute wards that admit a range of patient sizes.
What makes the TR-4200’s frame different from the standard TR-3200? The TR-4200 uses a reinforced bariatric frame designed to handle the dynamic loads of heavier patients during transfers and bathing. The castors are also heavy-duty rated. This structural difference is why the weight capacity steps up from 507 lbs (230 kg) to 595 lbs (270 kg), and why the TR-4200 is specified over the TR-3200 for heavier patient populations.
Accessories
Accessories for the TR-4200 Atlas Junior — including bariatric mattress pads and positioning aids — are available through authorized dealers. Full accessories listing coming soon.
